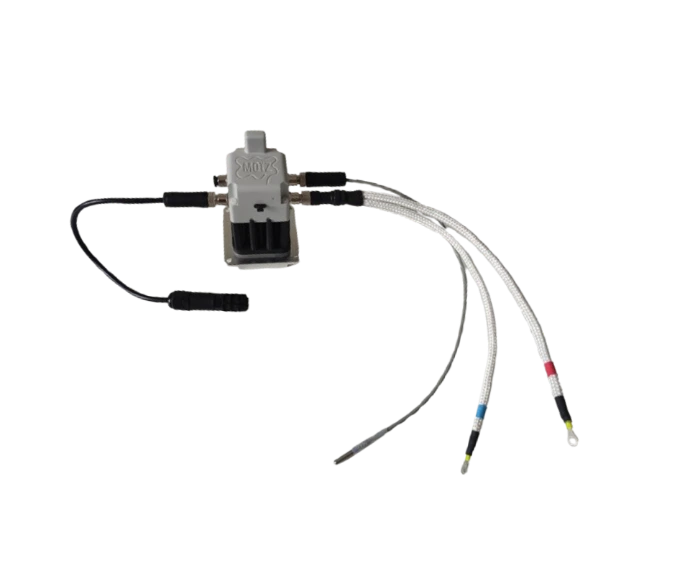

Four industrial M8 ports
Harvestree provides four measurement ports with industrial M8 connectors. Each port can be assigned a port measurement in software. The internal front-end conditions and multiplexes signals so that many passive or low-power probes can be used when they are compatible with the selected measurement.
Where to find details
Use the sections below to quickly open only what you need, then fold it back when done.
Port measurements process and calibration — direct technical reference
Main document: Harvestree Measurements Technical Reference
Use this for detailed measurement behavior, calibration logic, and technical interpretation limits.
Uplink interpretation — direct via transmission
Main document: Harvestree LoRaWAN Payload Decoding
Use this to understand how measured values are encoded and decoded in LoRaWAN payloads.
Wired polling (Modbus RTU) — direct register map
Main document: Harvestree Modbus Register Table
Use this when integrating the device with PLC/gateway polling through Modbus master requests.
Catalog — probes, accessories, and products
Main document: Catalog
Qualified probes, mounting accessories, and product references from MOIZ.
Choosing probes
- Select compatible probes and accessories from the Catalog.
- Generic or user-wired probes require approval from the manufacturer before use.
- Custom sensors can be integrated through a partnership with MOIZ.
For anything related to probes and port measurements, use the Measurements technical reference for behaviour and limits. Product and accessory listings are in the Catalog.
